# Architecture

###  **Architecture**

v402 provides a unified architecture and set of APIs that connect three key layers — *Index Platforms*, *Content Providers*, and the *Facilitator Service*.Through these layers, v402 enables seamless, low-cost paid distribution of premium content across multiple blockchains.

* **Index Platforms (AI/Crawlers/Visitor)** integrate via the v402\_index\_client SDK to automatically detect 402 responses, sign payments, and access protected resources.
* **Content Providers (UGC Websites)** use the v402\_content\_provider SDK to easily protect and monetize their content through simple API decorators and automatic verification logic.
* **The Facilitator Layer**, powered by the x402 protocol, handles cryptographic verification, multi-chain settlement, and resource discovery, ensuring transparent and interoperable payment coordination.

By abstracting away on-chain complexity, v402 offers developers a plug-and-play foundation for integrating micropayments directly into websites, AI systems, and data crawlers—creating an open, programmable economy for digital content in the AI era.

<figure><img src="https://t3s9t3yu1uj.sg.larksuite.com/space/api/box/stream/download/asynccode/?code=ZWI1NjAyYTk5YzQyMTRhNjgyMGRkZDIyYzRmYmU4ZTRfREpIWWdZdmRwVHFDSVl5Und4V3FPbnJpTFJ3Tk9LeXpfVG9rZW46QlZ6V2JzdHptb2I1UGl4NFF5Y2xLeENnZ2piXzE3NjE2MjQ3NDU6MTc2MTYyODM0NV9WNA" alt=""><figcaption></figcaption></figure>

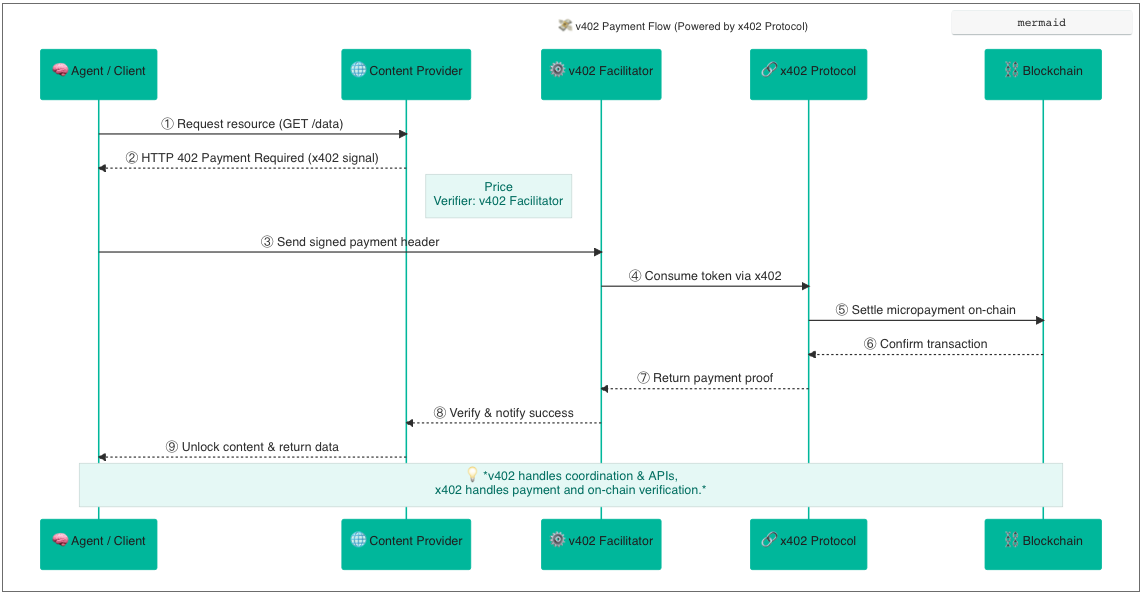

### **Data Flow**

#### **Payment Verification**

1. **Signature Verification**: EIP-712 signatures ensure authenticity
2. **Amount Validation**: verify payment amount matches requirements
3. **Time Windows**: Valid before/after timestamps prevent replay
4. **Nonce Tracking**: Prevent double-spending
5. **Recipient Validation**: Ensure payment goes to correct address

#### **Data Protection**

1. **Private Keys**: Never exposed or transmitted
2. **Database Encryption**: Sensitive data encrypted at rest
3. **HTTPS Only**: All production traffic over TLS
4. **API Authentication**: Optional API key protection
5. **Rate Limiting**: Prevent abuse

<figure><img src="/files/RrREIKDpwnsbs7bIsnTO" alt=""><figcaption></figcaption></figure>

### **Conclusion**

v402 defines a new standard for machine-native content monetization — an open framework that transforms how value flows between creators, AI systems, and the web itself.By combining the x402 protocol, robust APIs, and interoperable SDKs, v402 enables a low-cost, programmable, and verifiable economy for digital content — paving the way for the next generation of open AI infrastructure.<br>

### **References**

* [Cloudflare Pay Per Crawl Private Beta](https://www.cloudflare.com/paypercrawl-signup/)
* [x402 Protocol Specification (Coinbase)](https://x402.org)
* [EIP-712: Typed Data Signing](https://eips.ethereum.org/EIPS/eip-712)
* [EIP-3009: Transfer With Authorization](https://eips.ethereum.org/EIPS/eip-3009)
